Metal tubes designed to block electromagnetic waves for non metallic materials

Waveguides are specially designed metal tubes in order to block electromagnetic waves. They are available in almost any size depending on frequency. Attenuation curve is in relationship with diameter. Any non metallic material can be fed through the waveguide such as optical fiber, water, gas or air.

There are two versions available of the waveguide. A Mu-copper version and a messing version with thread.

The Mu-copper version (7850) is available in 12mm, 15mm, 22mm and 28mm and the messing version (7855) with thread is available in 11.5mm, 21mm, 33mm and 47,5mm

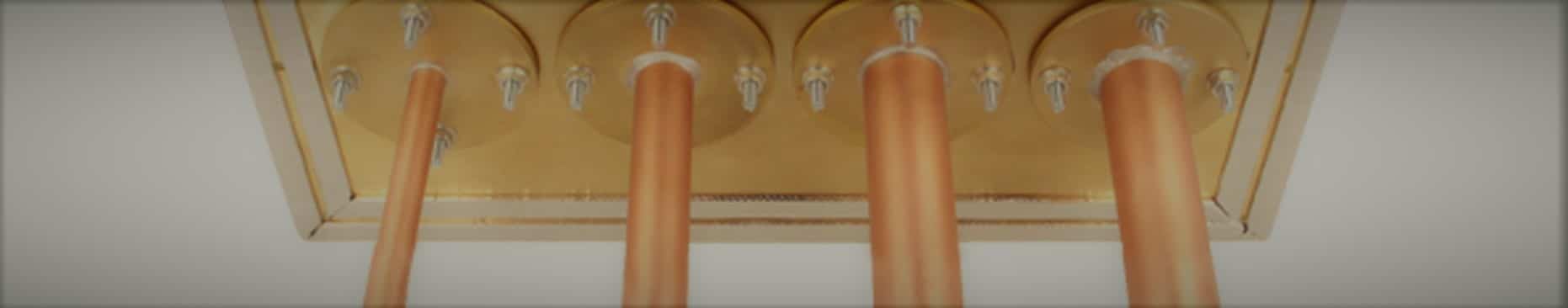

Waveguide with condensate hoses

Attenuation waveguide
Waveguide Shielding performance attenuation

Waveguide Copper Version 7850
Waveguide messing with thread version 7855
