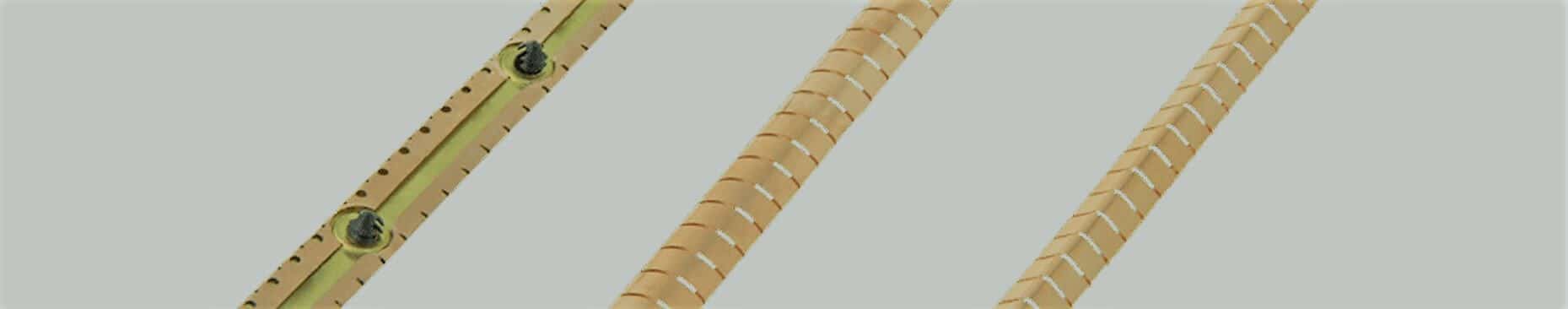

Snap-on fingerstrip gaskets can be attached on tracks or rails, or through holes or slots in your construction
These Snap-on fingerstrips have very low compression force and almost no friction when compressed. They are excellent for “sliding” applications. The symmetrical design allows two-way contact. Very convenient for ESD grounding and RFI/EMI shielding of:
Fingerstrips as STP files
To receive the STP files of the fingerstrips please contact us with the part number you need.
Installation process:
NOTE: For some fingerstrips special Snap-on fingerstrip tracks are available for mounting.
Bold items are 98% on stock.
Snap-on 2202
| Part number | A | D | F | G | H | Material thickness | Available mounting track |
|---|---|---|---|---|---|---|---|
| 2202-01* | 9.1 | 2.8 | 403 | 4.8 | 4.3 | 0.08 mm | |
| 2202-02 | 9.1 | 2.8 | 403 | 4.8 | 4.3 | 0.08 mm | TR2202-02 |
| 2202-04 | 11.4 | 3.6 | 383 | 6.4 | 5.8 | 0.08 mm | TR2202-04 |
| 2202-05* | 15.8 | 5.6 | 379 | 9.6 | 8.8 | 0.10 mm | |
| 2202-07* | 8.9 | 2.8 | 508 | 4.8 | 4.3 | 0.08 mm | |
| 2202-08 | 8.9 | 2.8 | 508 | 4.8 | 4.3 | 0.08 mm |
Clip-on 2203
The low fingerstrip profile of .080″ (2.0 mm) enables practical installation and compression in very narrow grooves and openings. The long, slender fingerstrip profile has very low compression force and is very durable. Works well with “wiping” applications.
| Part number | A | D | F | G | H | Material thickness | Available mounting track |
|---|---|---|---|---|---|---|---|
| 2203-01 | 7.6 | 3.3 | 406 | 4.8 | 4.3 | 0.05 mm | |
| 2203-02 | 8.1 | 2.5 | 406 | 4.8 | 4.2 | 0.05 mm | |
| 2203-03 | 8.1 | 2.9 | 400 | 4.8 | 4.3 | 0.05 mm | TR2203-03 |
| 2203-04 | 8.1 | 2.8 | 406 | 4.8 | 4.3 | 0.05 mm | |
| 2203-05 | 9.1 | 3.0 | 381 | 4.8 | 4.3 | 0.05 mm | |
| 2203-06 | 9.4 | 3.3 | 400 | 6.5 | 5.7 | 0.05 mm | TR2203-06 |
| 2203-08 | 15.2 | 5.8 | 457 | 7.2 | 6.4 | 0.08 mm | TR2203-08 |
| 2203-09 | 15.3 | 5.6 | 400 | 9.5 | 8.7 | 0.05 mm | TR2203-09 |
| 2203-10 | 19.5 | 8.1 | 400 | 9.5 | 8.7 | 0.08 mm | TR2203-10 |
| 2203-11 | 20.3 | 8.1 | 400 | 9.5 | 8.7 | 0.10 mm | TR2203-11 |
Clip-on 2204
| Part number | A | B | D | F | G | H | Material thickness |
|---|---|---|---|---|---|---|---|
| 2204-01 | 11.4 | 6.0 | 2.0 | 406 | 3.1 | 2.5 | 0.05 mm |
| 2204-01-01 | 11.4 | 6.0 | 1.5 | 406 | 3.1 | 2.5 | 0.05 mm |
| 2204-02 | 15.2 | 8.2 | 3.0 | 406 | 3.1 | 2.5 | 0.05 mm |
| 2204-02-01 | 15.2 | 8.2 | 2.3 | 406 | 3.1 | 2.5 | 0.05 mm |
Clip-on 2205
| Part number | A | B | D | F | G | H | Material thickness |
|---|---|---|---|---|---|---|---|
| 2205-02 | 15.2 | max 2 | 2.3 | 406 | 3.2 | 2.5 | 0.09 mm |
| 2205-03 | 14.0 | max 1.5 | 2.0 | 406 | 3.2 | 2.5 | 0.09 mm |
| 2205-04 | 19.1 | max 1.5 | 3.0 | 406 | 3.2 | 2.5 | 0.09 mm |
Snap-on fingerstrip mounting tracks
The installation of the 2200 Series can be directly in your housing using slots or alternatively using a Snap-on fingerstrips track (mounting rail).
| Part number | A | F |
|---|---|---|
| TR2202-02 | 8.1 | 400 |
| TR2202-04 | 11.0 | 381 |
| TR2202-06 | 15.3 | 381 |
| TR2203-03 | 6.6 | 406 |
| TR2203-06 A, B or C | 8.1 | 400 |
| TR2203-07 A, B or C | 14.2 | 457 |
| TR2203-10 A, B or C | 19.2 | 400 |
| TR2203-11 A, B or C | 17.8 | 400 |
Snap-on fingerstrips rivet
| Part number | |
|---|---|
| R-01 | For plate thicknesses of 0.5 to 1.5 mm |
| R-02 | For plate thicknesses of 1.1 to 1.9 mm |
Mounting examples
Ideally suited for applications where lids or doors (think of doors for a Faraday cage or EMI shielded enclosure) are repeatedly opened and closed.
This type fingerstrip is also widely used in 19” racks, communication cabinets, communication cabinets, EMI/RFI shielded enclosures. The 2200 Snap-on Fingerstrips mounting series profiles can be used for earthing or electrical connection.
