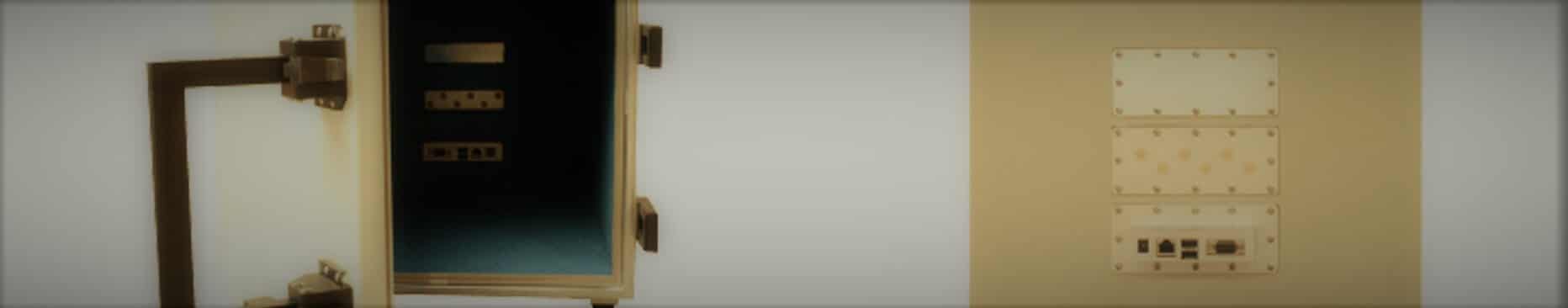

Medium size desktop type shielded box for testing. Measurement working size 400 (W) * 400 (D) * 400 (H)

Medium desktop measurement box (400x400x400)

By default, this box comes with 4 shielded SMA penetrations, 12 VDC, data line filter (RJ45), 2 times USB and a VGA openetration. Many other shielded conduits are available on request. Thay may optionally also be added later,

  • Wireless communication test system
  • For 3G, wifi, Bluetooth, wireless test, RFID.
  • High levels of shielding attenuation, greater than 65 dB
  • Easy & Flexible operation in Lab and production line
  • R&D, custom design
  • Box can be equipped with shielded power filters for power connection in the box while still blocking all wireless signals.

Technical specifications
Data typeType 2, Type 4
Radio frequency interfaceSMA*6
Numbers of filters6 pcs
Work size (mm)400(W)* 400(D)* 400(H)
Appearance size (mm)450(W)*530(D)*435(H)
Weight (kg)30
Working temperature(°C)0-50
Isolation(≥70 dB @2.4 GHz) & (≥65 dB @5.8 GHz)
Appearance colorBeige

The RF shielded box is the most economical solution for blocking for example GSM, WiFi, Bluetooth and other wireless communication standards. The average attenuation over a wide frequency range is 80 dB. See attenuation table below.

Frequency (GHz)Attenuation (dB)
These values are measured under laboratory conditions.
In your situation results may differ. Please read our Guarantee.
Technical drawing
Shielding performance
