Magnetic Gasket Strip 7460

A gasket for doors and panels with a magnetic strip. Very low closure force to prevent bending of doors, lids and panels.

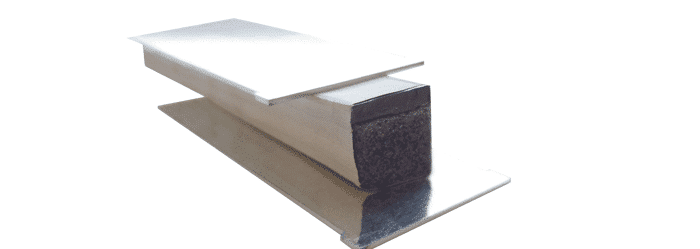

The magnetic gasket strip is made of our 7400 ultra soft shield with a self adhesive on the bottom and at the top a high flexible magnetic strip. This strip will create contact with a metal door (or ferro strip on a non-magnetic door)

Ultra soft shield 7400 series is an HF-shielding gasket with high shielding performance and extremely low closure force. This prevents deflection of doors/parts and improves shielding effectiveness. This product works very well when used in combination with stainless steel and other metals.

The core consists of high-grade polyurethane foam with a maximum compression of 80%, which distinguishes Ultra soft shield 7400 from other commonly used shielding materials.

Ultra soft shield 7400 is covered with a highly conductive, wear and tear resistant, metallized fabric.


  • Gasket can be compressed up to 80%
  • Very low closure force
  • Very high electrical conductivity
  • High shielding performance
  • Roll lengths of 1 to 1000 meters, depending on width and height of the EMI gasket
  • Easy to fit with self-adhesive
  • High abrasion resistance
  • Can be cut with a pair of scissors
  • Because the Ultra soft shield 7400 series is so soft,
    it is easy to bend it around corners

Options (on request)

  • Cut into accurate
  • lengths
  • Ultra soft shield 7400 series combined with a water seal (see our Ultra soft twin shield 7800 series)
  • With UL94V-0 flame-retardant foam core
  • With chemical-resistant rubbers like EPDM
  • With silicone-sponge core for high temperatures up to 220 °C
  • Different conductive foils and fabrics
  • Bites or shapes cut out for easy application or bends, possible according to customer drawing

Ultra soft shield very easy compress

Our Ultra soft shield 7400 series is very easy to compress

Ultra soft shield shielded door prevent bending

Ultra soft shield is commonly used for shielded doors to prevent bending of the door

Shielding performance:

  7400 series - Ultra soft shield

Please note : These values are measured under laboratory conditions.Results may vary in other situations. Please read our Guarantee.

Mechanical properties:


Available dimensions

Part numbersWidthHeight
7460-9-99 mm9 mm
7460-12-1212 mm12 mm
7460-15-1515 mm15 mm
7460-20-2020 mm20 mm
