For thin doors and lids, this L-shaped gasket is used to achieve two goals – a water seal and an EMI seal.
This L-shaped gasket as an efficient combination seal for doors and lids. The gasket is used to achieve two goals as: a water seal and an EMI seal.

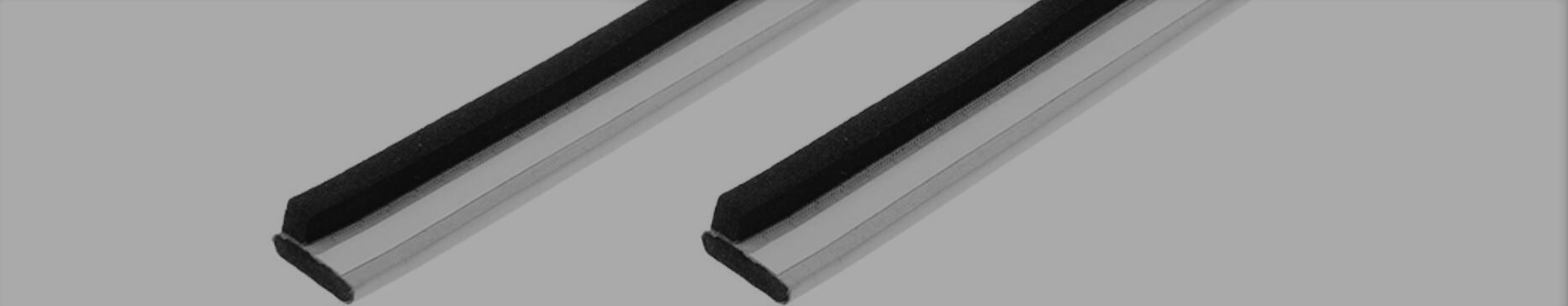

The L-shaped gasket is made from a solid piece of neoprene foam. One side has been laminated with conductive textile (the conductive side) and the other side is uncovered neoprene which provides a water seal.
The flange of the door will compress the water-seal side of the gasket with very little force to assure a watertight seal.
The electrically conductive part on the other side of the gasket establishes an electrical connection between the lid and housing
Options (on request)
7500 series – L-shape gaskets
|7500 series L-shaped gaskets (Electric / Far Field)|
Please note: These values are measured under laboratory conditions. Results may vary in other situations; please read our Guarantee.
|X = conductive cover|
Other sizes on request
