EMC-IP Gasket 7300

Water sealing EMI gaskets for screwed applications like panels, displays, and windows. With high shielding performance

The 7300 series EMC-IP gaskets are cost-effective combinations of an EMI shielding gasket and a water seal. This type of gasket comes with a self-adhesive strip. The gasket consists of two neoprene foam cores, one of which is covered with reinforced foil, based on the high performance Amucor alloy. Amucor is highly compatible with aluminum and zinc-plated steel. It is recommended to use highly conductive textile instead of Amucor if the gasket is intended to come in contact with alochrom or stainless steel. The two parts can be bent independently from one another to guarantee optimal shielding and sealing performance. Sharp inner corners can be made easily without interrupting the water seal. For special applications we can offer different foam cores, conductive foils and fabrics.

Benefits:

  • Bends easily around sharp corners without interrupting the water seal
  • Excellent water sealing up to IP65 (depending on construction)

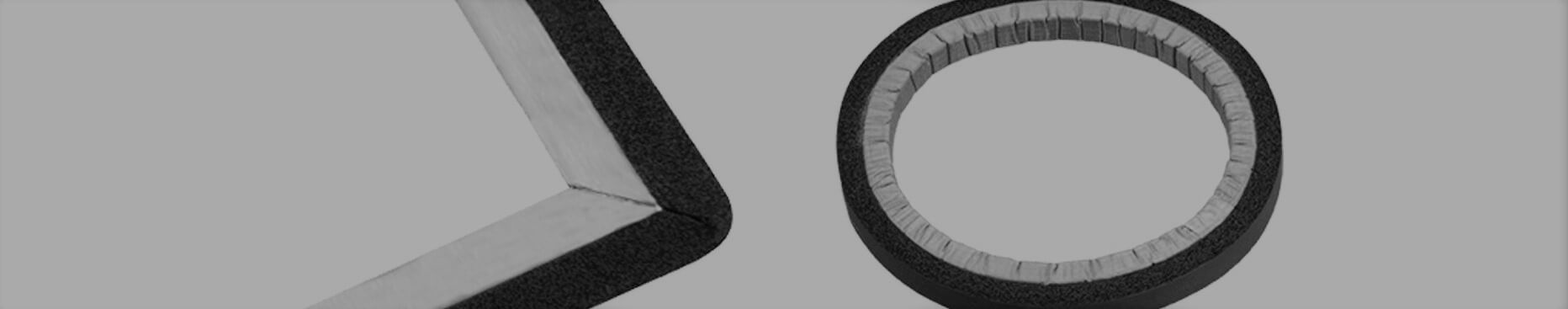

The 7300 EMC-IP gasket can also be produced in a circle shape. The water-seal can be either on the outside or the inside of the gasket

Construction:

Please note : These values are measured under laboratory conditions. Results may vary in other situations; please read our Guarantee.



Compression stops (optional)

Disk or washer-type compression stops can be included to prevent over-compression.

Washer type Used at bolt holes
Disk type Used next to bolt holes

EMC-IP gasket with Amucor (Foil code A)
EMC-IP gasket with highly conductive textile (Foil code T)
EMC-IP gasket with highly conductive textile (Foil code T)

Part numbers:

Width X (mm)
Height
Y
(mm)
 4689101215182025
17300-4-17300-6-17300-8-17300-9-17300-10-17300-12-17300-15-17300-18-17300-20-17300-25-1
27300-4-27300-6-27300-8-27300-9-27300-10-27300-12-27300-15-27300-18-27300-20-27300-25-2
37300-4-37300-6-37300-8-37300-9-37300-10-37300-12-37300-15-37300-18-37300-20-37300-25-3
47300-4-47300-6-47300-8-47300-9-47300-10-47300-12-47300-15-47300-18-47300-20-47300-25-4
57300-4-57300-6-57300-8-57300-9-57300-10-57300-12-57300-15-57300-18-57300-20-57300-25-5
67300-4-67300-6-67300-8-67300-9-67300-10-67300-12-67300-15-67300-18-67300-20-67300-25-6
87300-4-87300-6-87300-8-87300-9-87300-10-87300-12-87300-15-87300-18-87300-20-87300-25-8
10 7300-6-107300-8-107300-9-107300-10-107300-12-107300-15-107300-18-107300-20-107300-25-10
12 7300-6-127300-8-127300-9-127300-10-127300-12-127300-15-127300-18-127300-20-127300-25-12
15  7300-8-157300-9-157300-10-157300-12-157300-15-157300-18-157300-20-157300-25-15
18   7300-9-187300-10-187300-12-187300-15-187300-18-187300-20-187300-25-18
20    7300-10-207300-12-207300-15-207300-18-207300-20-207300-25-20
25     7300-12-257300-15-257300-18-257300-20-257300-25-25
Bold item numbers are 98% stock items.
