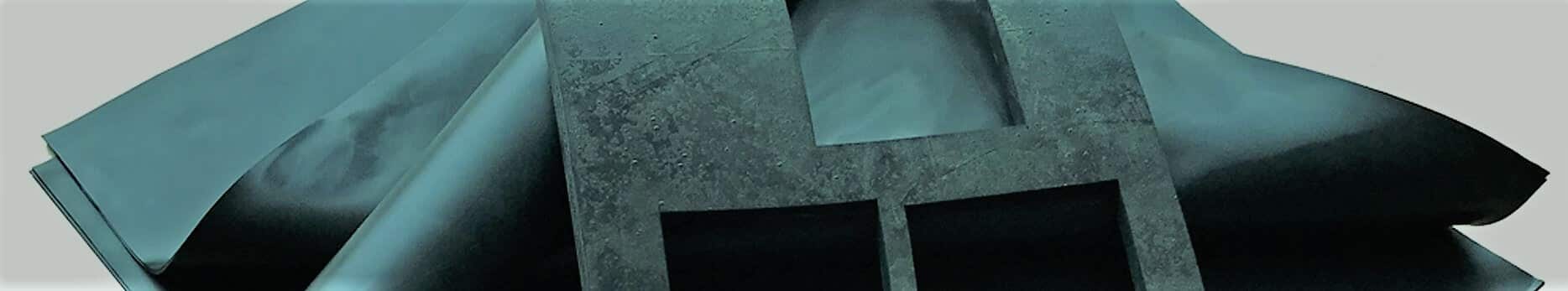

The rubber is made conductive by incorporating small conductive carbon particles throughout the material.
This rubber is made conductive by incorporating small conductive carbon particles throughout the material. It can provide an EMI-proof and watertight seal in narrow constructions.
5755-S Electrically conductive carbon filled rubbers are typically used for ESD and EMI shielding applications.
Due to its quite excellent conductivity, grounding, and EMI shielding effect, it is well suited for ESD application in electronics equipment. The rubber can be manufactured in various shapes such as sheets, molded parts, die-cut, strips, o-rings, etc.
Benefits
1
Conductive adhesive information (Conductive PSA)
| Property | Unit | Outcome | Test method |
|---|---|---|---|
| Surface resistance | Ω/sq | <0.10 | MIL-DTL-83528C |
| Adhesive strength | g/25mm | 850 | ASTM D 3330 |
| Conductive PSA | – | Acrylic + Ni | – |
| Liner | – | paper, Film | – |
Shielding effectiveness (dB)
| 100 MHz | 70 |
| 500 MHz | 70 |
| 1 GHz | 80 |
| 10 GHz | 55 |
| These values are measured under laboratory conditions. Results may differ in field applications. Please read our Guarantee. | |
1
Technical properties
| Filler | Carbon |
| Base polymer | Silicone |
| Width (mm) | 600 x 600 * (1 mm thickness 450 x 450 mm) |
| Thickness (mm) | 0.8 to 5 * |
| Elongation, %, min. | 50 |
| Flame resistance, UL94 (horizontal) | HB |
| Flame resistance, UL94 (vertical) | V-0 |
| Volume resistance, Ohm-cm (expression of conductivity) | 1.8 |
| Shore A (1 mm thickness): | 71 |
| Shore A (2 mm thickness) | 75 |
| Tensile strength. psi, min. | 50 |
*larger sizes/thickness available on request
