Clip-on Gasket Standard Shapes 6500

Clip-on EMI/RFI shielding gaskets with water seal. These gaskets are also known as trim gaskets or trim shield gaskets.

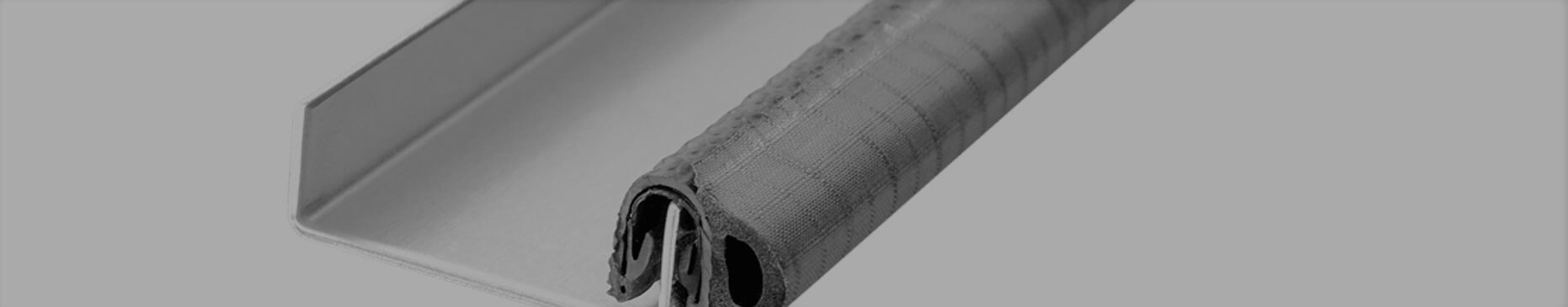

This easily mounted clip-on gasket is composed of two layers: a sponge rubber water seal, and an EMI-shielding side of highly conductive, wear-resistant metallized fabric. The gasket is very flexible due to the hollow rubber, ensuring a low closure force.

The gasket is assembled without tools, simply by manually pressing the section onto the metal flange of your enclosure. Different sizes are available on request. The gasket can be bent in either direction. It can also be bent into a right angle to form a rounded corner with a very small radius). Temperature ranges from -40 to +110 °C.

Temperature Resistance

An EPDM core with an operating temperature up to 100 °C and good resistance to UV, water, and acids make the clip-on shielding gaskets the right choice for outdoor applications.

Available versions:

The clip-on range comes in three flavors:

  • Type W series (Clip-on shielding gasket with water seal)
  • Type F series (Fully wrapped EMI/RFI-shielding gasket)
  • Type H series (For heavy-duty applications, for example military)

Shielding performance:

Shielding effectiveness depends on surface, shape of gasket and materials used.

  6500 series Clip-on gaskets

Please note: These values are measured under laboratory conditions. Results may vary in other situations; please read our Guarantee.

                          Flame retardant version
                       Clip-on gasket with water seal
                          Clip-on gasket with water seal

Standard Shapes

Part number 6580 : Big side clip-on gasket
Part number 6585 : Small clip-on gasket
Part number 6590 : Big clip-on gasket
Part number 6595 : Side clip-on gasket

Technical Datasheet
