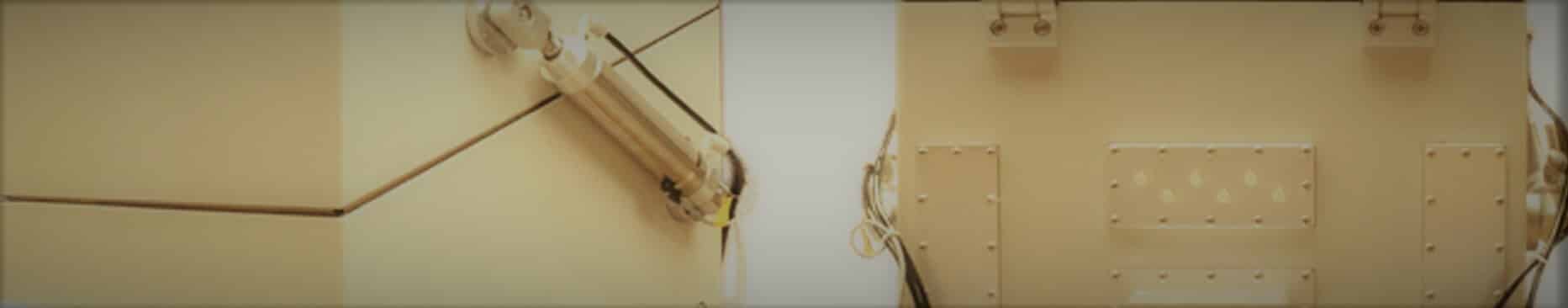

 Automatic Test Box

Test box with automatic open & closure system. Working size 433 x 440 x 313 mm.

Automatic test box (433 x 440 x 313 mm)
  • An ideal solution for bluetooth, wifi, 3G, 4G testing
  • High isolation
  • Easy & Flexible operation

Features
  • High levels of shielding attenuation, greater than 75 dB
  • Box can be equipped with shielded power filters for power
  • Connection in the box while still blocking all wireless signals.
  • Easy & Flexible operation in Lab and production line
  • R&D, custom design

Technical specifications
Frequency (Hz)0.8~6 GHZ
Isolation≥75 dB @ 2.4 GHz
≥70 dB @ 5.8 GHz
Radio frequency interfaceSMA*4
Data interfaceDC*1 USB*2RS-232*1 (could be customized)
AC power requirementsAC 110-220 V / 50-60 Hz
Work size (mm)433(W)*440(D)*313(H)
Outer dimensions (mm)530(W)*562(D)*395(H)
Box body materialcoll plated, surface paint
Weight (kg)30 kg
Working temperature (°C)0-50
Appearance colorBeige
* Notice: dimensions are indicative
Technical drawing
Automatic test box technical drawing dimensions
