Extreme Ultra-Soft EMI-IP Gaskets

JHSC Home / Products / Holland Shielding Home Extreme Ultra-Soft EMI-IP Gaskets

Extreme Ultra-Soft EMI-IP Gaskets

Extreme ultra-soft EMI-IP gaskets – 7450

Gasket covered with conductive textile and closed-cell neoprene

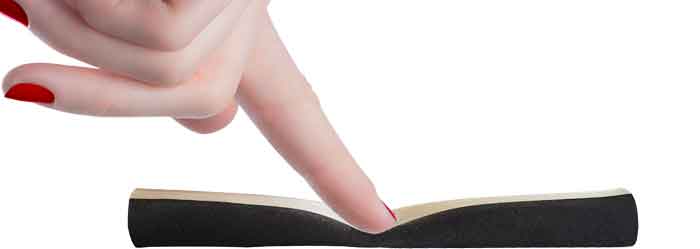

The extreme ultra-soft gasket is a high-performance shielding gasket made of neoprene and covered with conductive textiles. The outer closed-cell neoprene material creates a water seal and due to the inner PU foam core of the gasket, it creates an extremely low closure force and has and has a compression rate of 90%.

This prevents the deflection of doors/parts, which improves shielding effectiveness. The product works very well in combination with stainless steel and other metals.

The gasket can be ordered in different sizes and shapes (on request) and can be ordered on rolls up to 1000 meters.

Benefits:

  • The gasket can be compressed up to 90%
  • Very low closure force
  • Very high electrical conductivity
  • High shielding performance
  • Roll lengths of 1 to 1000 meters, depending on the width and height of the EMI gasket
  • Easy to fit with self-adhesive
  • High abrasion resistance
  • Can be cut with a pair of scissors
  • It is easy to bend it around corners
Part numberHeightWidth
7450-12-121212
7450-12-241224
7450-15-151515
7450-15-301530
7450-20-202020
7450-20-402040
7450-25-252525
7450-25-302550
7450-30-303030
7450-30-603060
7450-35-353535
7450-35-703570
7450-40-404040
7450-40-804080
7450-50-505050
7450-60-606060
7450-70-707070
7450-80-808080
Custom sizes can be made on request
