Conductive Washer, Cylinder and Springs

Washer, Cylinder and Springs 5500

Electrically Conductive rubber products for grounding, contact point, water tight rings or flexible springs.

Standard Nickel-graphite conductive rubber is used for EMI applications. The rubber is made conductive by incorporating small conductive metal particles throughout the material. It can provide an EMI-proof and watertight seal in narrow constructions. But they are also useful for EMP protection, wave-guide applications and against static electricity.

When in need of high deflection and low closure force we make conductive foams. The material will return to almost its original height when released. The foam is covered with a layer of conductive polyurethane to protect it from environmental influences and to prevent burrs when cutting. Its conductivity is excellent in all directions (X, Y, and Z). Conductive foam is fire retardant as well as RoHS compliant.

Benefits

  • Any size in a few days
  • Custom parts
  • Small packing of 10 pieces each
  • High temperature up to 220 °C
  • Easy to mount
  • Water tight constructions
  • High deflection foam

Options

  • Available in different thicknesses
  • Low compression force
  • Rubber with silver particles

Technical data

ItemData
Thickness (mm)1, 2, 2.2 or 3.4
(other sizes on request)
ColorGrey
Adhesive strength (gf/25mm)>1.000
Holding strength (sec)>3.600
Surface resistance (Ω/sq)0.2
Surface resistance (Ω/in)1.0 max
Volume resistance (Ω/sq)0.2
Top-bottom resistance (Ω/in)1.0 max
RoHSCompliant
Fire retardant (cm/min)Pass

Temperature resistance

Temperature resistance depends on the core material of the metal knit EMI/RFI gasket; ranges from -60 °C up to 220 °C are possible. These Metal knit EMI/RFI gaskets are insensitive to external influences and can withstand harsh conditions very well.

Example of the 5500 Vertical ground spring on a PCB

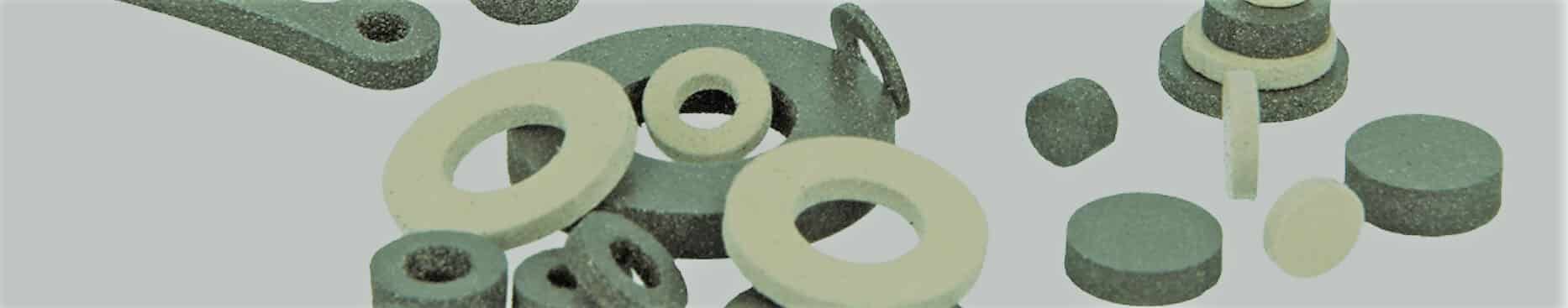

Examples of 5500 Electrically conductive rubber
Example of the 5500 Ground spring on a PCB

Stock dimensions

5500-C Cylinder

d (mm) Available in thickness 1-1,5-2-3-4 mm.
Other dimensions on request
216
318
420
522
624
826
1028
1230
1432
Other dimensions on request. Packed in bags of 10 pieces

5500-OR Oval-ring, thickness: 2-3-4 mm

d1d2L
2510-15-20-25-30-35
3715-20-25-30-35-40
4920-25-30-35-40-45
Other dimensions on request. Packed in bags of 10 pieces

5500-VGS Vertical Grounding Spring, thickness: 2-3-4 mm, electrical resistance 10-50 Ω

SDL
22-3-410-15-20-25-30-35
32-3-415-20-25-30-35-40
42-3-420-25-30-35-40-45
Other dimensions on request. Packed in bags of 10 pieces



5500-R Washer/Ring

d1xd2 Available in thickness 1-1,5-2-3-4 mm,
other thicknesses on request
2 x 516 x 32
3 x 718 x 36
4 x 920 x 40
5 x 1022 x 44
6 x 1224 x 48
8 x 1626 x 52
10 x 2028 x 56
12 x 2430 x 60
14 x 2832 x 64
Other dimensions on request. Packed in bags of 10 pieces

5500-GS Grounding Spring, thickness: 2-3-4 mm, electrical resistance 10-50Ω

d1d2L
2510-15-20-25-30-35
3715-20-25-30-35-40
4920-25-30-35-40-45
Other dimensions on request. Packed in bags of 10 pieces
